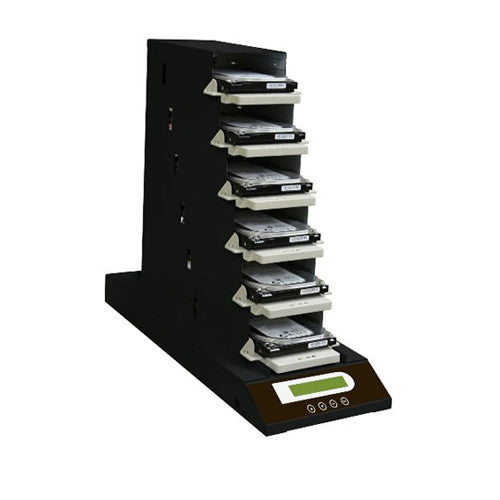

Daisy Chain HDD/SSD Duplicator


  • Complies with USA Department of Defense erase standard -5220M.

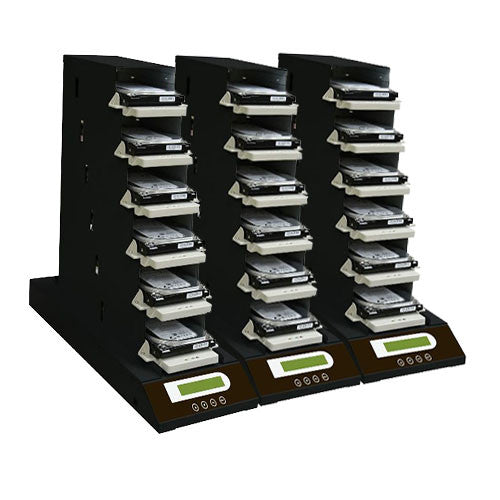

  • Leading-edge technology-"Daisy-Chain" makes production more efficient as more Legend series are hooked up!
  • Erase large volume of targets simultaneously without slowing down the speed.
  • Automatic power control to protect HDD from any damage during the insertion and removal
  • Copy features support for all HDD format.

This series supports 3 different kinds of duplication modes Quick Copy, All Partitions, and Whole HDD copy. If you have a big capacity 2TB HDD which only has 200GB data inside, Quick Copy can help reduce the duplication time from 5.6 hours to 33 minutes. It will not copy the empty space.

Support Flexible Target Expansion Up to 119 Targets

Multiple Interfaces Available Through Adapters

Support All Format Duplication at 3.9G/min WIN8, WIN7, WIN Vista, WIN200/98/95, MAC 10.X, Ubuntu, Fedora, Red Hat, FAT12/16/32/64,NTFS...etc


Model Target Legend 600 1-3 up to 119 HDD
Interface SATA
Display Monochrome LCD
Control Button 4 push buttons (Forward, Backward, OK, Esc)
Compatible Interface mSATA, eSATA, 2.5" SATA, 3.5" SATA, CF, iVDR, 2.5" IDE, 3.5" IDE
Erase Modes Quick Erase, Full Erase, DoD erase
Duplication Modes 1. Quick Copy (Systems & Files)
2. All Partition
3. Whole HDD
Support Format 1.Systems & files: FAT,NTFS,Linux (ext2, ext3, ext4), GPT,Dynamic HDD
2.All partition/Whole HDD: All formats
Support Language English, Japanese
Power Supply 12V, 9A
Humidity Operating 20%~80%
Storage 5%~95%
Temperature Operating 5øC~45øC
Storage -20øC~85øC
Safety CE, FCC, ROHS
Dimension (inch) 10.3"x4.3"x1.4"
